THE FINAL STEP IN QUALITY ASSURANCE
Take-off units and coilers for precise processing, material storage and transport of cables and wires
The Metzner MA products are equipped with a conveyor belt that transports cables and wires straight in the working cycle of the processing machine, an indispensable advantage when processing thin cables and hoses or large cable lengths on your cable production line. The take-off units actively take-off cables up to 30 mm diameter, count it and order it in a tray, for example.
For removal of the processed products, a process interrruption is not necessary. So, the MA models speed up the production process. Of course they are compatible with all Metzner machines. You have the choice:

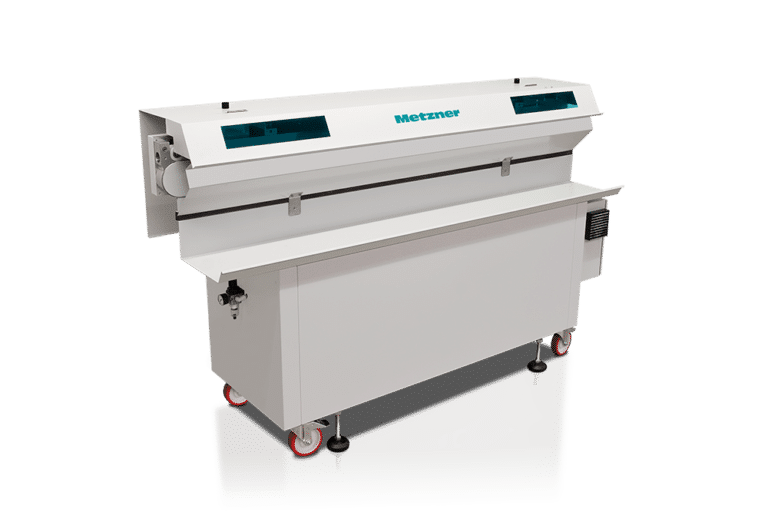

- Metzner MA 2000 for wires and cables up to 2 m length

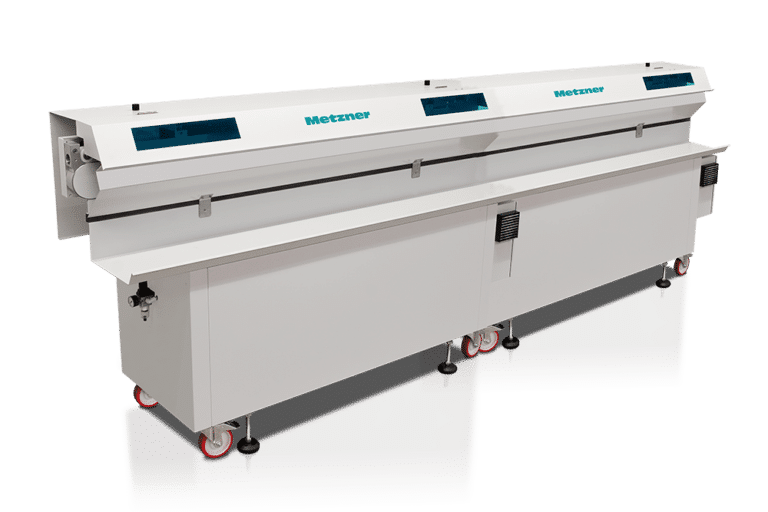

- Metzner MA 4000 for wires and cables up to 4 m length

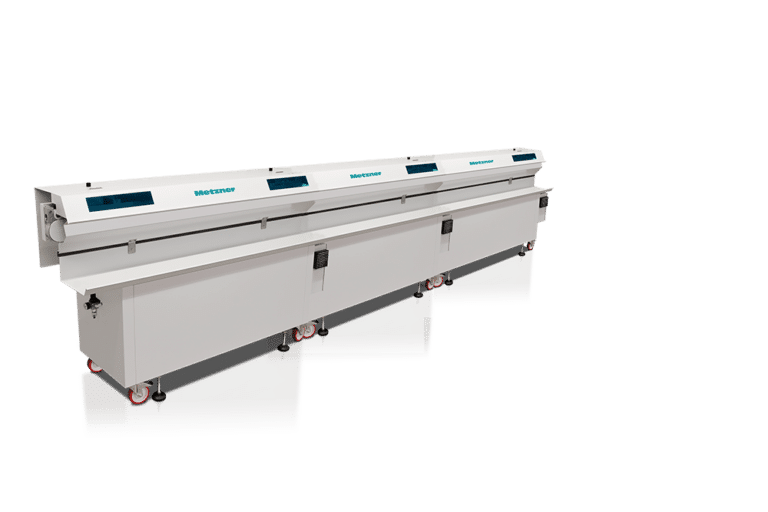

- Metzner MA 6000 for wires and cables up to 6 m length
-
Uninterrupted
production despite removal -
-
Perfect supplement
for your
cable production line -
Sorting function
-
TECHNICAL DATA
| Performance | MA 2000 | MA 4000 | MA 6000 |
| Wire diameter min. | 1.5 mm | 1.5 mm | 1.5 mm |
| Wire diameter max. | 30 mm | 30 mm | 30 mm |
| Wire length min. | 250 mm | 250 mm | 250 mm |
| Wire length max. | 2,000 mm | 4,000 mm | 6,000 mm |
| Transport speed max. | 180 MPS | 180 MPS | 180 MPS |
| Specifications | |||
| Electrical connection | 230 V; 50/60 Hz; 6.0 A | 230 V; 50/60 Hz; 6.0 A | 230 V; 50/60 Hz; 6.0 A |
| Compressed air connection | 6 bar | 6 bar | 6 bar |
| Dimensions (L x W x H) | 2,400 mm x 650 mm x 1,250 mm | 4,800 mm x 650 mm x 1,250 mm | 7,200 mm x 650 mm x 1,250 mm |
| Weight | 125 kg | 250 kg | 375 kg |
| Equipment | |||
| Sorting |  | | |
| Pneumatic lift function for immediate trouble shooting | option | option | option |
| Compatible to all Metzner machines | | | |
