THE AUTOMATIC WAY OF QUALITY MANAGEMENT
Take-off units, conveyors and coilers for your product handling
It is the logical evolution of automated production when the finished parts are also automatically removed, counted and sorted. In addition, Metzner conveyors and take-off units ensure that sensitive products are deposited undamaged.

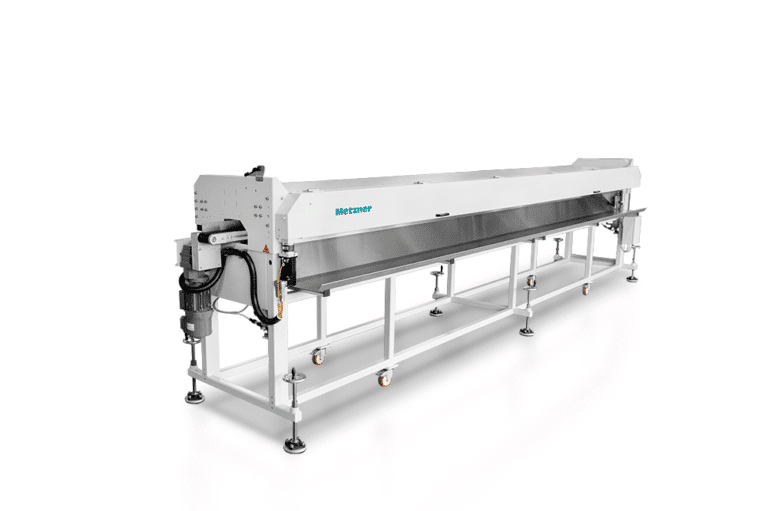

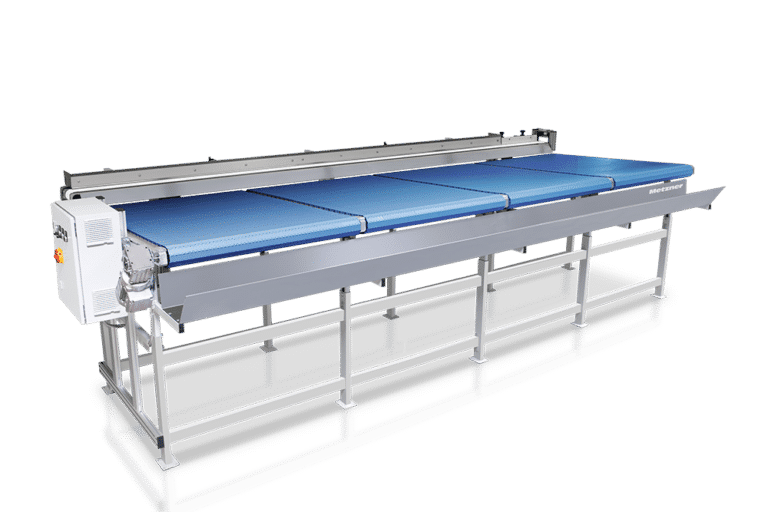

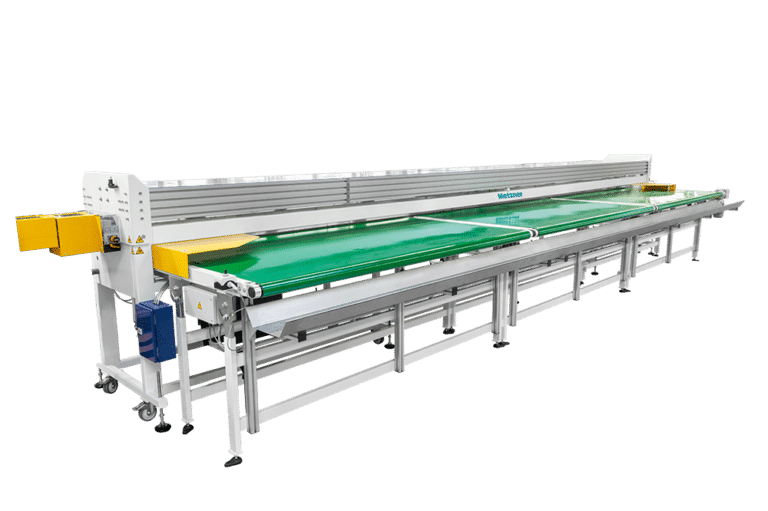

For this purpose, Metzner offer cross conveyors in which the products are transported away from the corner. On the other hand, there are take-off units where the transport takes place via the front side.
For the take-off you can choose between a pusher, a brush device or the contact free way with compressed air.

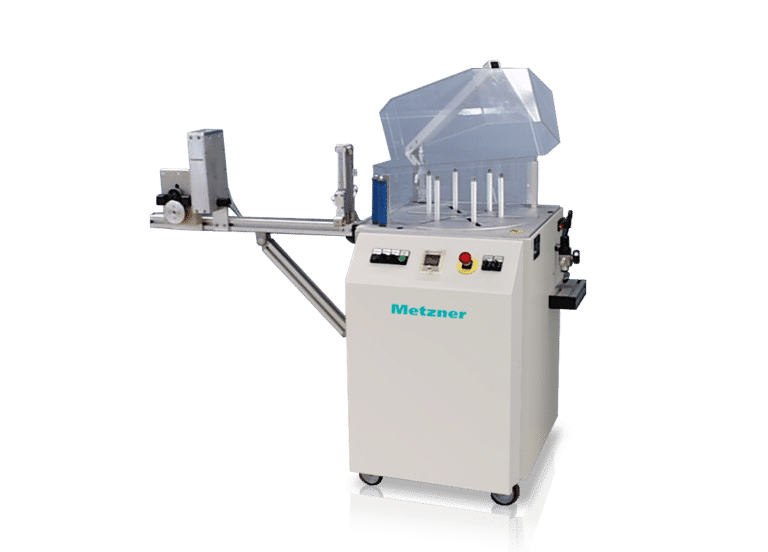

In addition, Metzner offer a tube coiler with built-in tension control to avoid material stretch. It is usable for tube rings up to 450 mm outer diameter.
-
End sensing function
-
-
-
Quality assurance
for your products -
Easier downstream processing
APPLICATIONS
- All profiles, tubes and other products made of rubber or plastics: Cross conveyors and Take-off units
- Sensitive products (e.g. profiles with textile or designed products): Cross conveyors and Take-off units with fully contact-free take-off by compressed air
- Impervious tubes: Tube coiler
TECHNICAL DATA
| Performance | Cross conveyor professional | Cross conveyor economy | Take-off unit professional | Take-off unit economy | Tube coiler |
| Material length | 3,000 mm – 6,000 mm | 3,000 mm – 6,000 mm | max. 6,000 mm | max. 6,000 mm | |
| Material width | max. 100 mm | max. 400 mm | |||
| Material height | max. 30 mm | max. 80 mm | |||
| Tube diameter | 15 mm | ||||
| Tube ring: inner | outer diameter | 150 mm- 350 mm | 200 mm – 450 mm | ||||
| Weight of ring | max. 50 kg | ||||
| Transport/Rotation speed | 70 MPS | 70 MPS | 120 MPS | 120 MPS | 200 RPM |
| Specifications | |||||
| Electrical connection | 3~400 V; 50/60 Hz; 2.8 A | 3~400 V; 50/60 Hz; 2.0 A | 230 V; 50/60 Hz; 2.0 A | 230 V; 50/60 Hz; 2.0 A | 230 V; 50/60 Hz; 6.0 A |
| Compressed air connection | 6 bar | 6 bar | 6 bar | 6 bar | 6 bar |
| Weight | 300 kg | 300 kg | depending on length | depending on length | 70 kg |
| Equipment | |||||
| Take-off | pusher; brush device or compressed air | pusher, brush device or compressed air | guide channel | push-off | retractable mandrels |
| Good-bad-parts sorting |  |
|
– | – | – |
| Additional sorting | |
– | |
|
– |
| Pneumatic lift function for immediate trouble shooting | – | – | |
option | – |
| Length measuring system | – | – | – | – | |
| Cutting module | – | – | – | – | |
| Positioning unit | – | – | – | – | |
| Torque adjustment | – | – | – | – | |
| Compatible to all Metzner machines | |
|
|
|
|
