THE FLY-KNIFE MACHINE WITH KNIFE LUBRICATION

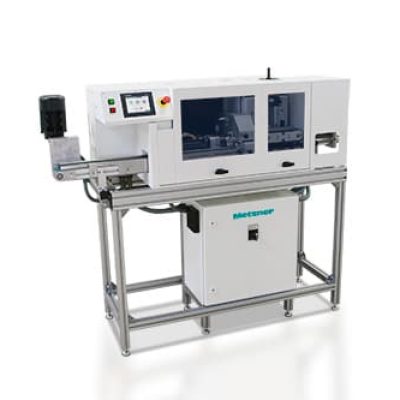

Metzner DYNAMAT 40 for materials up to 40 mm diameter
The Metzner DYNAMAT 40 is equipped with an integrated take-off belt and a micro-mist lubrication as standard. So since the knife operates in a closed space, both moistened and dry cuts can be performed. That’s what makes it an ideal automatic rubber cutting machine as well as a machine for many other materials.
Up to 4,000 cuts per minute
With the Metzner DYNAMAT 40 you can process material up to 40 mm | 1.57″ diameter with 4,000 continous cuts per minute. In the Stop & Go mode, the machine stops before each cut, so 800 perfectly exact cuts per minute are possible.
-
Equipped for
micro-mist
knife lubrication -
-
Integrated
take-off belt -
-
-
Up to 4,000 cuts
per minuteor 800 cuts per minute when the machine comes to a standstill before each cut
-
-
-
APPLICATIONS
The Metzner DYNAMAT is not just an automatic rubber cutting machine. As can be seen below, it can process all these materials for you, the diameter is up to 40 mm | 1.57″:
Solid rubber elements
Textile reinforced hoses
Rubber profiles
Silicon tubes, e.g. for medical applications
Other materials, e.g. bones for dogs
TECHNICAL DATA
| Perfomance data | Metzner Dynamat 40 |
| Material dimension (width, height, diameter) max. | 40 mm | 1.57″ |
| Length interval | 0.1 mm | 0.004″ |
| Feeding speed | 60 m/min. | 196’10” |
| Cutting rate: continuous cuts/min. | 3,200 |
| Cutting rate: Stop & go cuts/min. | 800 |
| Technical data | |
| Electrical connection | 3~400 V; 50/60 Hz; 10 A or transformator |
| Dimensions (L x W x H) | 2,100 mm x 838 mm x 1,650 mm | 6’11” x 2’9″ x 5’5″ |
| Weight | 200 kg | 441 lbs |
EQUIPMENT
| Metzner Dynamat 40 | |
| Integrated interface for peripherals |  |
| Control via PC and software | |
| PLC-control Siemens | |
| Integration into the factory’s IT-network | |
| Operation via color touchscreen 7″ | |
| Servo motor | |
| Belt feed with servo motor with integrated length measuring system | |
