Reliable Machines for Precise Cutting & Defined Stripping

Automated Cable Processing

Precision, process reliability and repeatability are essential when cutting and stripping cables. Metzner provides machine solutions for a wide range of cable types and cross-sections – from compact entry-level systems to high-performance solutions for large cross-sections. Functions such as slitting and multi-stage processing, combined with feeders, printing systems, winders and take-off units, enable expansion into complete production lines.

The METZNER AM Series:
Cable Processing in Many Variants

The AM series comprises machines for different requirements in cutting and stripping. Depending on the series and configuration, various cutting and processing systems are available – from compact double-blade systems to saw, rotary and multi-blade solutions.

This enables not only conventional cutting and stripping operations, but also longitudinal slitting, multi-stage processing and the processing of special cable constructions. Compare the AM series and their processing capabilities.

Compact, Efficient & Precise

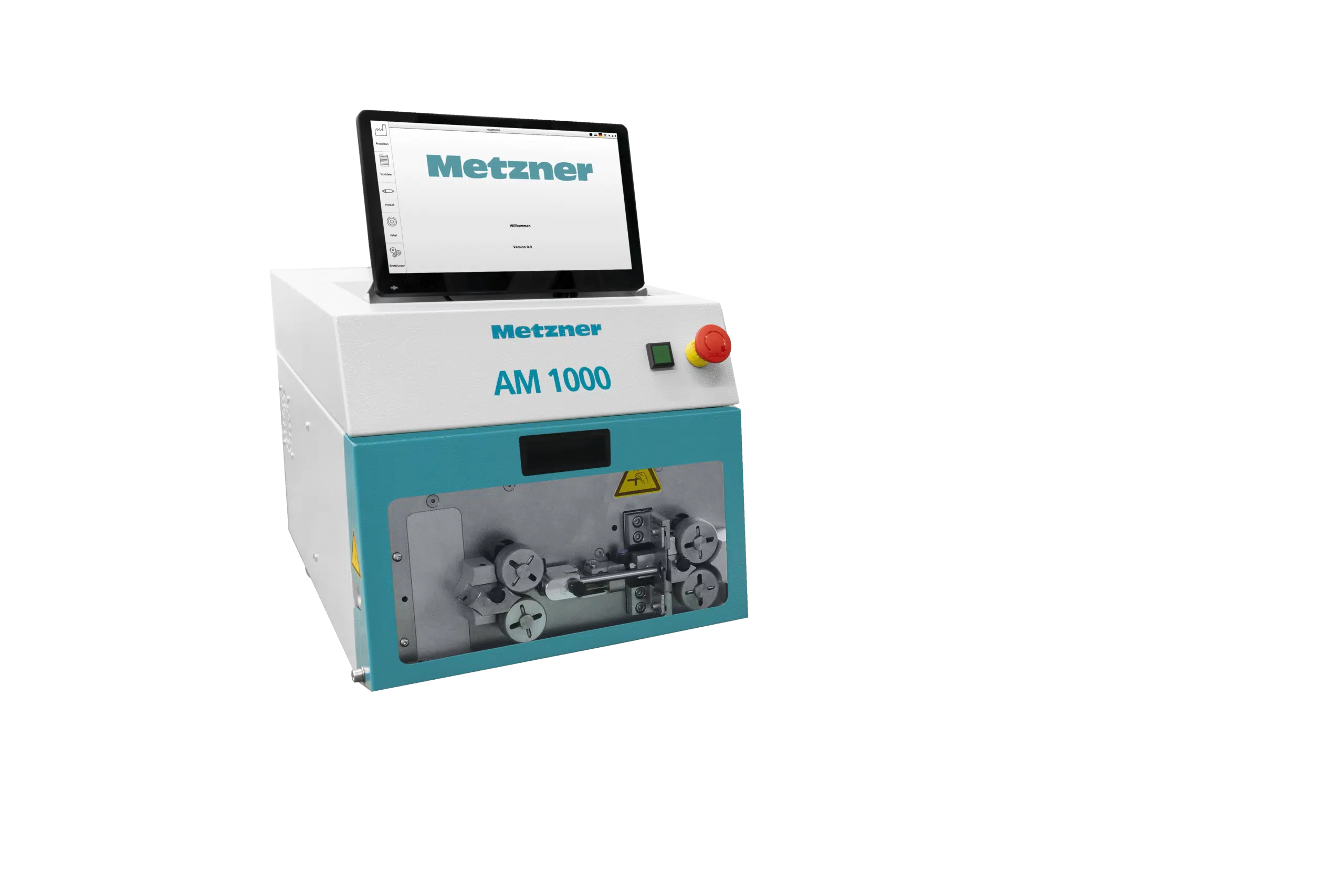

AM 1000
Up to 10 mm Ø · up to 6 mm² · up to 220 m/min

A fully equipped entry-level model for professional production requirements, including versatile processing capabilities, interfaces for peripheral equipment and standard software.



Versatile & Flexibly Configurable

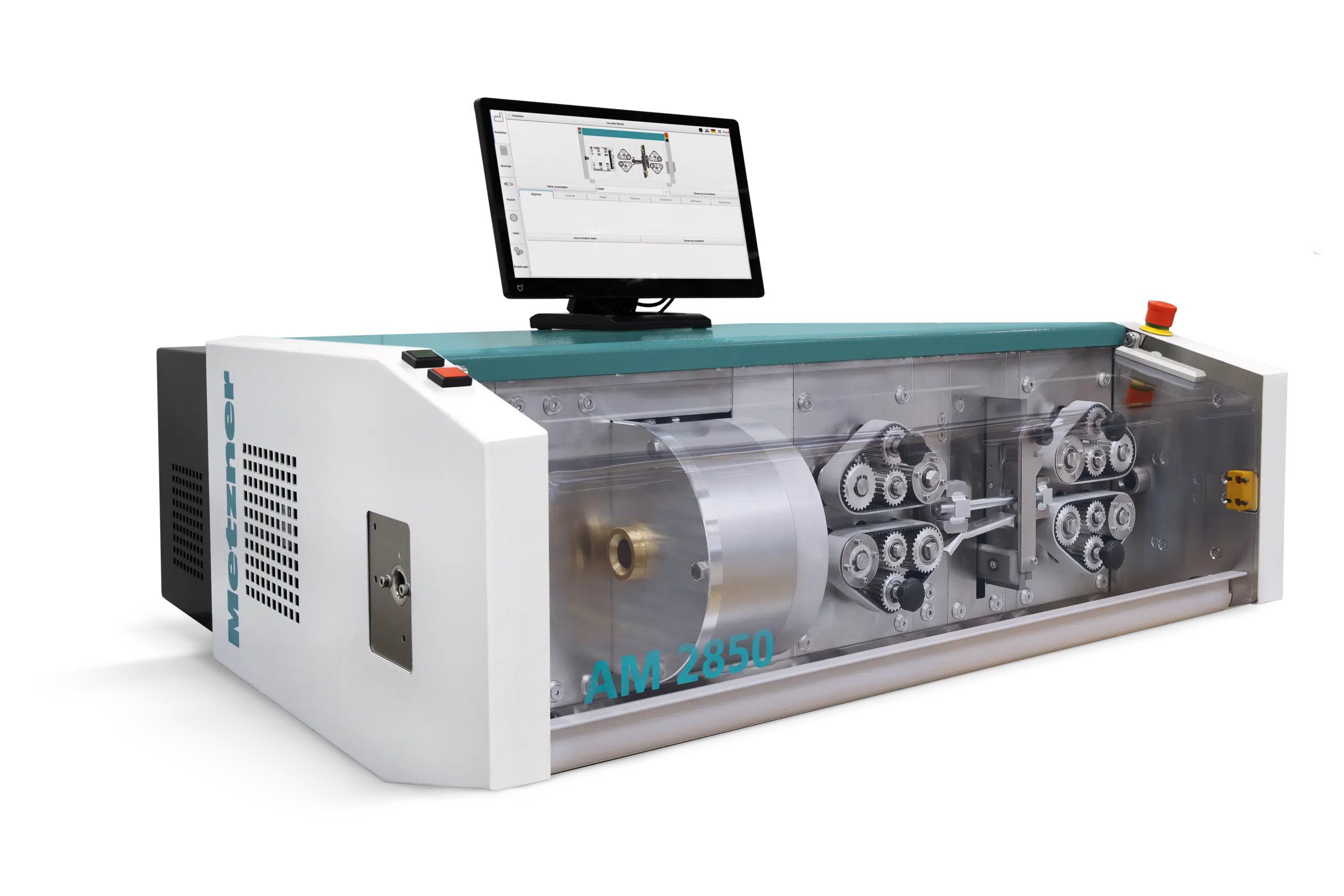

AM 2000 series
Up to 15 mm Ø · up to 35 mm² · up to 180 m/min

The AM 2000 series offers the right configuration for virtually any cable processing requirement. Depending on the configuration, double-blade, saw and rotary modules as well as multi-blade systems are available – for cutting to length, stripping and longitudinal slitting through to the processing of complex and multi-layer cables.



High Performance for Demanding Cables

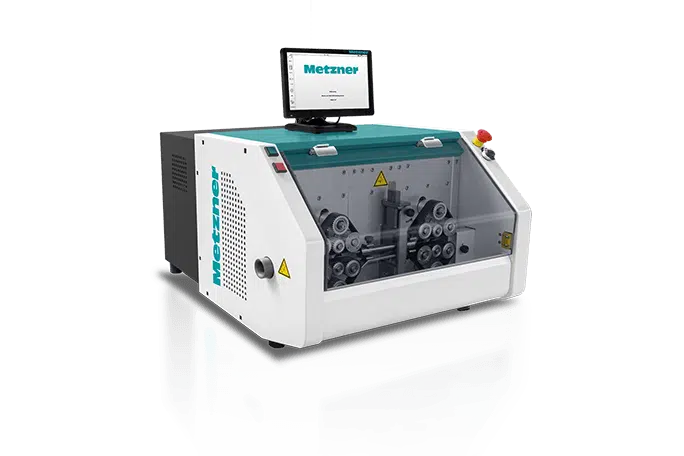

AM 3000 series
Up to 20 mm Ø · up to 70 mm² · up to 180 m/min

The AM 3000 series is designed for demanding cable processing applications. Its standard double-blade cutting system provides versatile processing capabilities, while powerful motors and robust components ensure high cutting force and reliable continuous operation.

Maximum Cutting Force for Large Cable

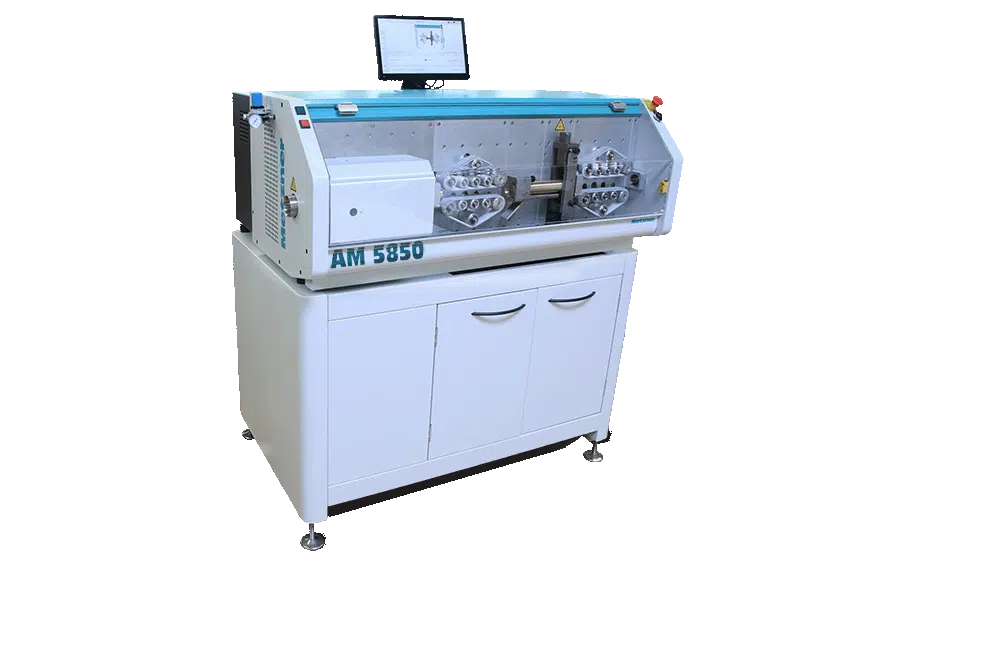

AM 5000 series
Up to 35 mm Ø · up to 185 mm² · up to 150 m/min

The AM 5000 series is designed for particularly demanding, high-force cable processing applications. Its standard double-blade cutting system enables multiple processing steps, while extra-long belt feeds transfer the high force evenly and gently to the cable.



AM Series
Performance Overview
AM 1000 AM 2800 AM 2850 AM 2800 SAW AM 2850 SAW AM 2900 AM 2950 AM 3800 AM 3850 AM 5800 AM 5850
Cutting to length ●●●●● ●●●●●●
Stripping with full and partial pull-off ●●●●● ●●●●●●
Window stripping ●●●–– ●●●●●●
Extra-long pull-offs in multiple steps ●●●–– ●●●●●●
Stripping of multi-core cables ●●●–– ●●●●●●
Inner conductor stripping (option) ––––– ●●––––
Stripping of flat ribbon cables + inner conductor stripping¹ ○●●–– ●●●●●●
Stripping of Teflon cables ●●●●● ●●●●●●
Incising and longitudinal slitting –●●●● ●●●●●●
Stripping of extremely thin insulation ●–●–● –●–●–●
Stripping with protective cap for shield insulation –●●●● ●●●●●●
Multi-stage stripping –●●●● ●●●●●●
Multi-stage processing of coaxial cables ––●–● –●–●–●
Marking and printing ●●●●● ●●●●●●
Wire cutting to length ●●●●● ●●●●●●
Max. diameter 10 mm15 mm15 mm15 mm15 mm 15 mm15 mm20 mm20 mm35 mm35 mm
Max. cross-section 6 mm²35 mm²35 mm²35 mm²35 mm² 35 mm²35 mm²70 mm²70 mm²185 mm²185 mm²
● Standard
○ Optional
– Not available
¹ Depending on the material
AM Series AM 1000 AM 2000 AM 3000 AM 5000
Applications Compact standard applications Versatile cable processing Demanding industrial applications Large and heavy cables
Max. cable cross-section 6 mm² 35 mm² 70 mm² 185 mm²
Max. cable diameter 10 mm 15 mm 20 mm 35 mm
Configuration Benchtop unit Compact & versatile High-performance Heavy-duty performance
Complex cables ● ●● ●●● ●●●
Multi-stage processing ✓ ✓ ✓ ✓
Rotary processing – Model-dependent AM 3850 AM 5850
Product series → view → view → view → view
AM 1000
Applications Compact standard applications
Max. cable cross-section 6 mm²
Max. cable diameter 10 mm
Configuration Benchtop unit
Complex cables ●
Multi-stage processing ✓
Rotary processing –
Product series → view
AM 2000
Applications Versatile cable processing
Max. cable cross-section 35 mm²
Max. cable diameter 15 mm
Configuration Compact & versatile
Complex cables ●●
Multi-stage processing ✓
Rotary processing Model-dependent
Product series → view
AM 3000
Applications Demanding industrial applications
Max. cable cross-section 70 mm²
Max. cable diameter 20 mm
Configuration High-performance
Complex cables ●●●
Multi-stage processing ✓
Rotary processing AM 3850
Product series → view
AM 5000
Applications Large and heavy cables
Max. cable cross-section 185 mm²
Max. cable diameter 35 mm
Configuration Heavy-duty performance
Complex cables ●●●
Multi-stage processing ✓
Rotary processing AM 5850
Product series → view
