FLY-KNIFE MACHINE WITH MICRO KNIFE HUMIDIFICATION

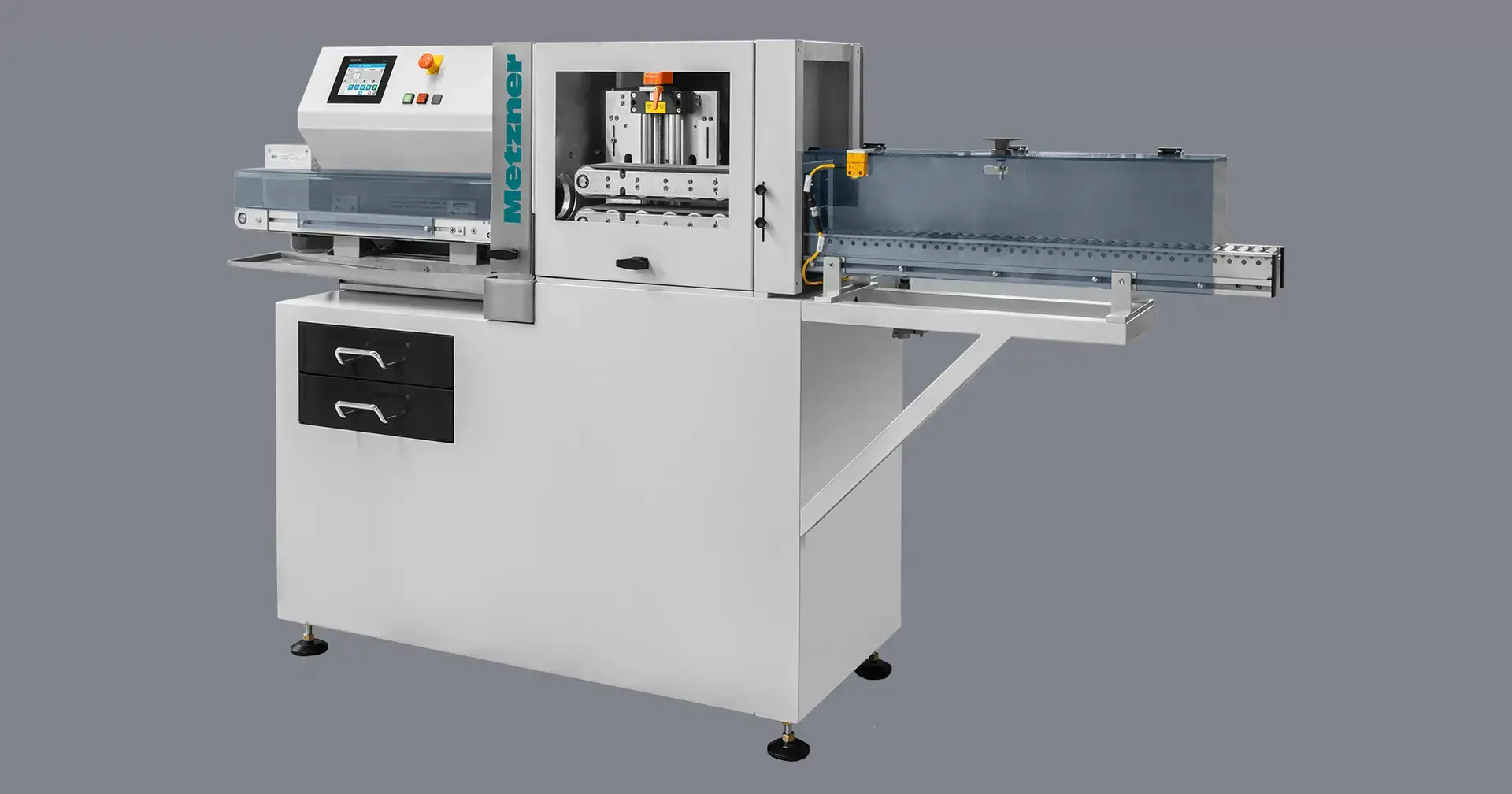

Metzner DYNAMAT 80 fly-knife cutter for materials up to 80 mm diameter

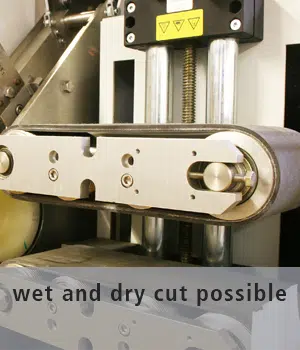

The Metzner DYNAMAT 80’s powerful cutting knife is placed in a fully enclosed working space. That’s why it can cut dry and also humidificated. As a standard, the flying-knife cutter is equipped with an integrated discharge conveyor as well as an extended safety equipment.
The belt conveyor is 100 mm | 3.94″ or 200 mm | 7.87″ wide and is centrally adjustable via a handwheel. The Metzner DYNAMAT 80 fly-knife cutter cuts up to 3,200 times per minute and up to 800 times in the Stop & Go mode, which means the material is stopped before it gets cut.
The belt conveyor is 100 mm | 3.94″ or 200 mm | 7.87″ wide and is centrally adjustable via a handwheel. The Metzner DYNAMAT 80 fly-knife cutter cuts up to 3,200 times per minute and up to 800 times in the Stop & Go mode, which means the material is stopped before it gets cut.
-
Equipped for
micro-knife humidification -
-
Integrated
discharge conveyor -
-
-
Up to 3,200 cuts
per minuteOr 800 cuts per minute when the machine comes to a standstill before each cut
-
-
-
-
APPLICATIONS
The Metzner DYNAMAT can process these materials for you, whereby the material’s diameter is up to 80 mm | 3.15″:

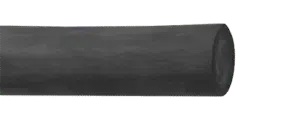

Solid rubber elements

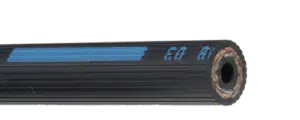

Textile reinforced hoses

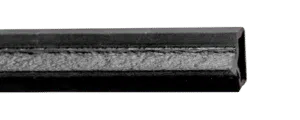

Rubber profiles

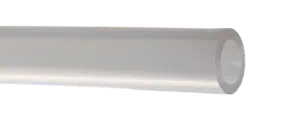

Silicon tubes, e.g. for medical applications

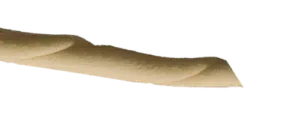

Other materials, e.g. bones for dogs
TECHNICAL DATA
| Perfomance data | Metzner Dynamat 80 |
| Material dimension: width max. | 80 mm | 3.15″ |
| Material dimension: height max. | 80 mm | 3.15″ |
| Length interval | 0.1 mm | 0.004″ |
| Feeding speed | 60 m/min. | 196’10″/min. |
| Cutting rate: continuous cuts/min. (at cutting length 5mm | 0.02″) |
3,200 |
| Cutting rate: Stop & go cuts/min. (at cutting length 5mm | 0.02″) |
800 |
| Technical data | |
| Electrical connection | 3~400 V; 50/60 Hz; 10 A or with transformator |
| Dimensions (L x W x H) | 2,500 mm x 600 mm x 1,400 mm | 8’2″ x 2′ x 4’7″ |
| Weight | 315 kg | 694 lbs |
| Equipment | |
| Integrated interface for peripherals |  |
| Control via PC and software | |
| Operation via color touchscreen 7″ | |
| Servo motor | |
| Belt feed with servo motor with integrated length measuring system | |
