Power and precision for even thick cables

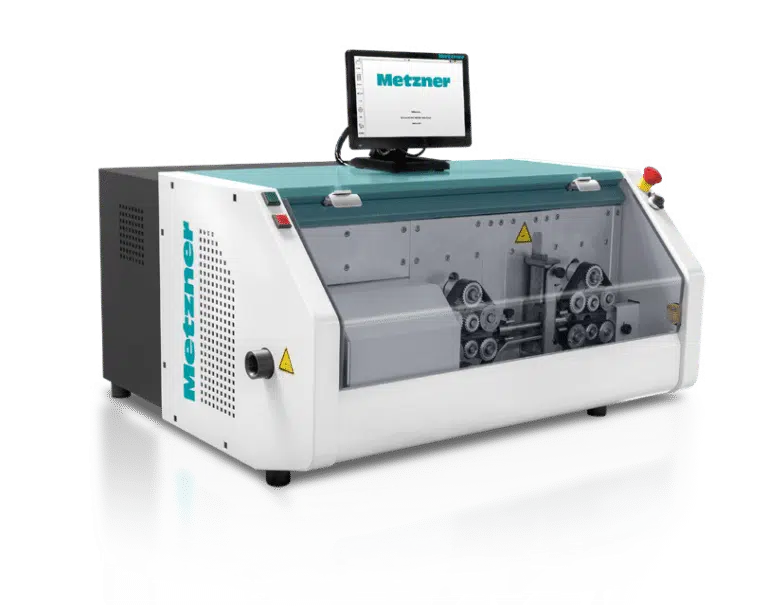

The AM 5000 cut-and-strip machine range
The models of the AM 5000 range are especially suitable for precise automatic cutting to length and multi-stage insulation removal with thick cables up to 240 mm² section and 35 mm diameter. Have a look at their unique USPs and the video below.
-
-
Multi-stage
StrippingAll modes in the AM 5000 range enable automatic cutting to length and multi-stage stripping to be performed ( full and partial haul-off).
-
Double
MonitoringAn interuption-free automatic production is ensured due to the double monitoring sytem. Several sensors monitor the cable feeding.
-
-
Havy duty

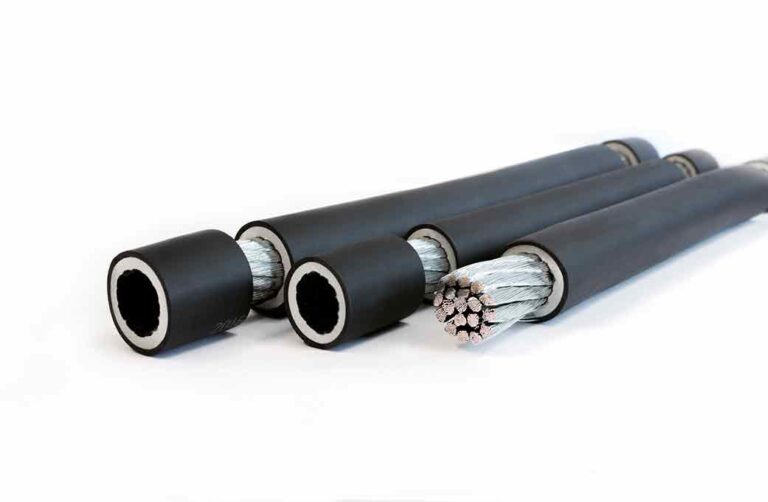

variantThe AM 5800 HD model is designed for processing particularly thick and heavy cables with up to 240 mm²
-
Double
KnifeThe Metzner double-knife cutting system for varied and multi-stage processing tasks. With unique power for cable sections up to 240 mm².
-
APPLICATIONS
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Cras non gravida arcu. Nulla eget feugiat lectus. Sed malesuada elit eget odio venenatis, sit amet lobortis ante pharetra. In consequat suscipit rhoncus. Praesent faucibus auctor nibh a molestie. Nulla pharetra sapien vel quam molestie bibendum.
TECHNICAL DATA

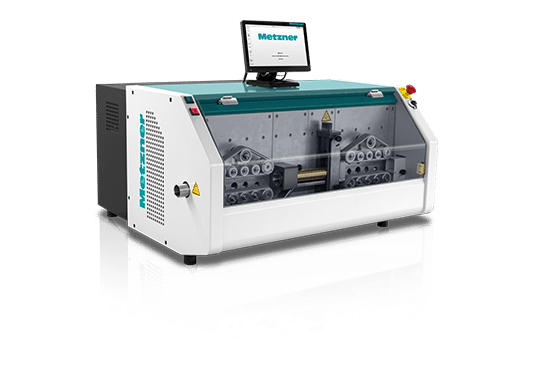

| Functions/Programs | AM 5800 | AM 5850 |
| Cutting to length | ✔ | ✔ |
| Stripping with full pull-off | ✔ | ✔ |
| Stripping with partial pull-off | ✔ | ✔ |
| Stripping in multiple steps | ✔ | ✔ |
| Slitting | ✔ | ✔ |
| Multiple stripping | 3 layers on each cable side | 3 layers on each cable side |
| Flat cables | – | – |
| BOM processing | ✔ | ✔ |
| Material end detection | ✔ | ✔ |
| Cable length correction | ✔ | ✔ |
| Recipe data management | ✔ | ✔ |
| Length measurement system | optional | optional |
| Machine Parameters | ||
| Transport unit belt/roll | belt | belt |
| Networking / MES interface (Industry 4.0) | optional | optional |
| Remote maintenance | ✔ PC integrated | ✔ PC integrated |
| Cable cross section stranded conductor | 185 mm² | 185 mm² |
| Max. outer diameter | 34 mm | 34 mm |
| Cable length | 100 mm – 99.999 mm | 100 mm – 99.999 mm |
| Max. Cable transport speed | 150 m/min | 150 m/min |
| Max. Stripping length full stripping | Cable start: 90-400mm | cable end: 0-260 mm | Cable start: 0-400 mm | cable end: 0-260 mm |
| USB/Ethernet | ✔ | ✔ |
| Electrical connection | 3~400V 50/60Hz 2,6A | 3~400V 50/60Hz 2,6A |
| Pneumatic connection | none | 6bar |
| Dimensions in mm | 1010x970x1685 | 1376x970x1685 |
| Weight | 180 kg | 250 kg |
| Rotary cutting unit | – | ✔ |
| Screen | 15″ touchscreen | 15″ touchscreen |
COMPATIBLE WITH:
all active, motorized Metzner cable feeding solutions
