Press automation: Metzner RPA 3-SC powder press unloading automation
The Metzner RPA 3-SC powder press unloading automation automatically removes green parts powder metallurgical steel from a powder press. Interfaces of all common manufacturers are available for this.
On the RPA 3-SC1 model, the integrated SCARA 4-axis robot removes empty sintering plates from a magazine and guides them to the loading station and loads the sintering plate. So, the machine manages up to 30 cycles of this fully automatic process in just one minute.
The RPA 3-SC2 model automatically conveys the sintering plates, which are manually placed on a belt, to the loading station. After fully automatic loading, the sintering plates are automatically transferred to a belt from which an operator removes them. This significantly reduces the changeover time of the sintering plates.
-
-

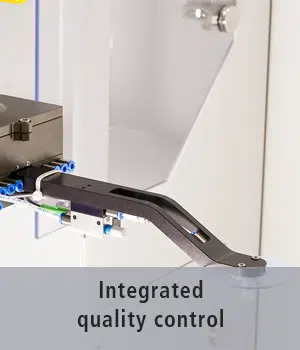

Integrated quality control
-
-
-
-
Easy
to operate -
Very high speed
-
Interfaces to
presses from different suppliers -
TECHNICAL DATA
| Performance data | RPA 3-SC1 | RPA 3-SC2 |
| Sinter tray supply | Sinter tray guiding unit | Double belt conveyor |
| Storage capacity: Empty sinter trays | 18 | 3 |
| Storage capacity: Loaded sinter trays | 3 | 3 |
| Sinter tray changing time | approx. 15 sec. | approx. 5 sec. |
| Sinter tray size | max. 400 mm x 300 mm x 50 mm | 1’4″ x 11.8″ x 2″ | max. 400 mm x 300 mm x 50 mm | 1’4″ x 11.8″ x 2″ |
| Sinter tray design | common designs | common designs |
| Performance references: pick & place | 30 parts/min. | 30 parts/min. |
| Performance references: pick & place with deburring | 18 parts/min. | 18 parts/min. |
| Speed | up to 2 m/sec. | 6’7″/sec. | up to 2 MPS | 6’7″/sec. |
| Repeatability | +/- 0.05 mm | 0.002″ | +/- 0.05 mm | 0.002″ |
| Mounting | mounting bracket | mounting bracket |
| Machine parameters | ||
| Power supply | 3~400 V, 50/60 Hz, 32 A or transformator | 3~400 V, 50/60 Hz, 32 A or transformator |
| Drive | electronic | electronic |
| Compressed air supply | 6 bar | 6 bar |
| Dimensions | 1,200 mm x 1,090 mm x 2,300 mm | 3’11” x 3’7″ x 7’7″ | 1,200 mm x 1,090 mm x 2,300 mm | 3’11” x 3’7″ x 7’7″ |
| Weight | 1,150 kg | 2,535 lbs | 1,150 kg | 2,535 lbs |
| Optional equipment | ||
| Gripper changing system |  | |
| Gripper system | option | option |
| Cleaning system | option | option |
| Part measuring system | option | option |
| Weighing system | option | option |
| Pneumatic deburring | option | option |
| Mechanical deburring | option | option |
