SUPERIOR POWER FOR YOUR PRODUCTION LINE

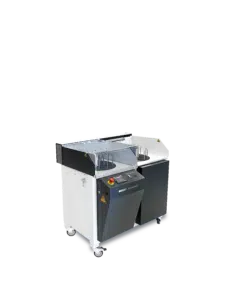

The Metzner AM 5000 range
If you process cables up to 185 mm² | 350 MCM cross-section, you should have a closer look at the cutting and stripping machines of the Metzner AM 5000 range. These models have an enormous amount of power. There is no need of an optional “booster unit”. Furthermore, they can be perfectly adapted to your needs with various peripherals from the same company.

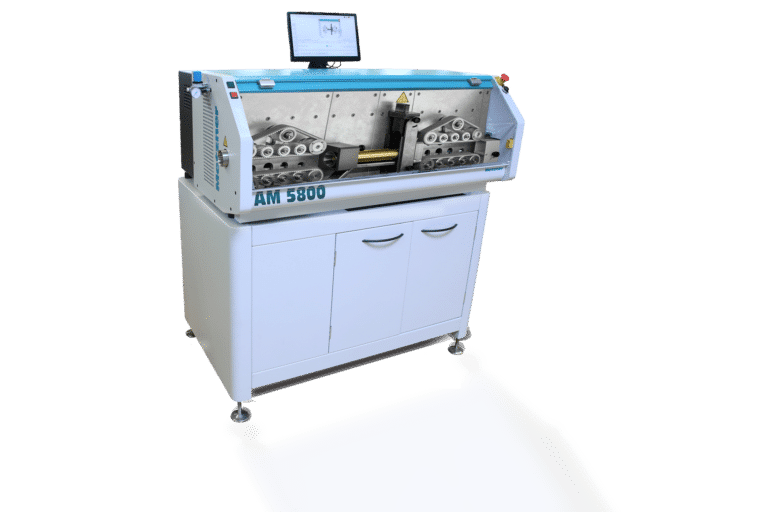

APPLICATIONS METZNER AM 5800
The Metzner AM 5800 cutting and stripping machine can perform these tasks for you:

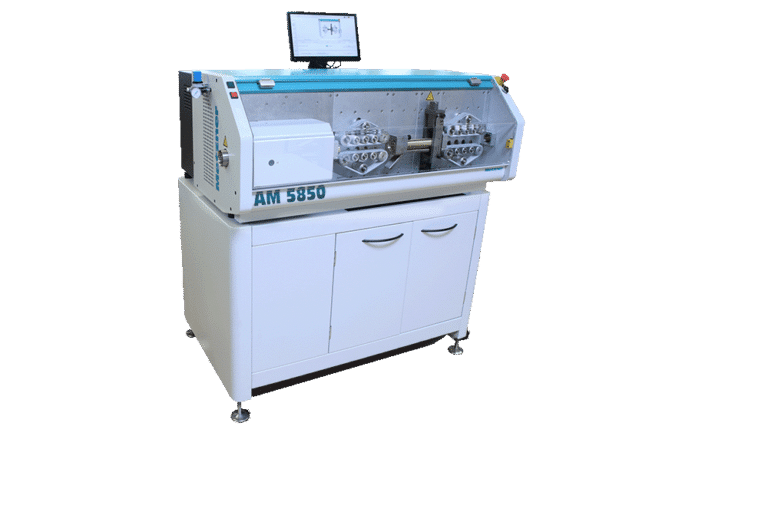

APPLICATIONS METZNER AM 5850

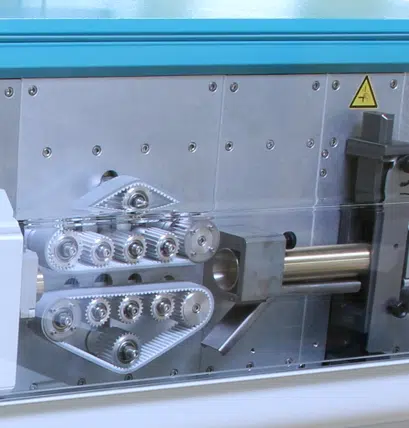

The Metzner AM 5850 with rotary head can perform these tasks for you:
FUNCTIONS AND EQUIPMENT
| AM 5800 | AM 5850 | |
| Rotary cutting unit | – |  |
| Cutting to length | |
|
| Stripping with full pull-off | |
|
| Stripping with partial pull-off | |
|
| Stripping in multiple steps | |
|
| Slitting | |
|
| Multiple stripping | 3 layers on each cable side | 3 layers on each cable side |
| Flat cables | – | – |
| Material end detection | |
|
| Cable length correction | |
|
| Recipe data management | |
|
| Length measurement system | option | option |
TECHNICAL DATA
| AM 5800 | AM 5850 | |
| Transport unit | belt | belt |
| Networking / MES interface (Industry 4.0) | option | option |
| Remote maintenance | PC integrated | PC integrated |
| Cable cross section stranded conductor | 1.5 mm² – 185 mm² | 16 AWG – 350 MCM | 1.5 mm² – 185 mm² | 16 AWG – 350 MCM |
| Outer diameter | 2.5 mm – 35 mm | 0.98″ – 1.38″ | 2.5 mm – 30 mm | 0.98″ – 1.18″ |
| Cable length | 100 mm – 999 m | 3.94″ – 3,281′ | 100 mm – 999 m | 3.94″ – 3,281′ |
| Max. Cable transport speed | 150 m/min. | 492 ft./min. | 150 m/min. | 492 ft./min. |
| Max. Stripping length full stripping | 1st side: 90 mm – 400 mm | 3.54″ – 15.75″ 2nd side: 0 mm – 260 mm | 0″ – 10.24″ | 1st side: 90 mm – 400 mm | 3.54″ – 15.75″ 2nd side: 0 mm – 260 mm | 0″ – 10.24″ |
| USB/Ethernet | | |
| Electrical connection | 3~400V; 50/60Hz; 2.6A or with transformer | 3~400V; 50/60Hz; 2.6A or with transformer |
| Pneumatic connection | – | 6 bar |
| Dimensions (L x W x H) | 1,010 mm x 970 mm x 1,685 mm | 36″ x 14″ 66″ | 1,376 mm x 970 mm x 1,685 mm | 40″ x 14″ x 66″ |
| Weight | 180 kg | 397 lbs | 250 kg | 551 lbs |
| Screen | 15″ touchscreen | 15″ touchscreen |
Of course, both the Metzner AM 5800 and the AM 5850 with rotary module can be adapted to your individual requirements.
A powerhouse with no need of a power booster
The Metzner AM 5000 models offer automation for wire processing up to 185 mm² | 350 MCM cross-section and 35 mm | 1.38″ diameter. The particularly powerful motors provide the necessary power as standard. A power booster is therefore not necessary. This makes the Metzner AM 5000 more attractively priced than some other machines that do not come with extras as standard.
Particularly gentle power transmission and therefore precise cuts

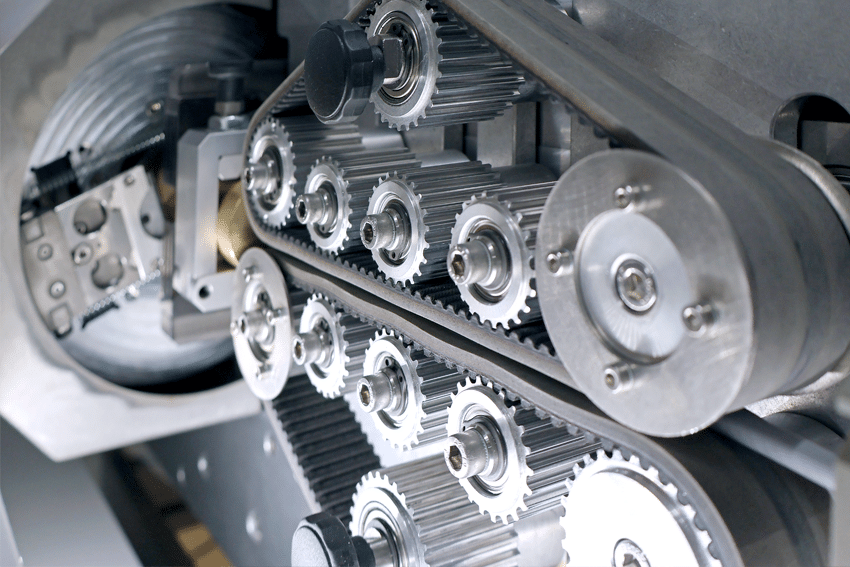

The particularly long tape feeds ensure that the cable is guided cleanly to the knife. The patented Metzner double blade not only offers you more flexibility because you can process a greater variety of cables. It also ensures precise multi-stage stripping. This in turn increases your ROI, as the quality of production is also improved.
Intelligent integration of the printers plus fully equipped software as a standard
With the Metzner AM 5000, all the software is on board as standard, so there are no extra costs. Both the PC and MES integration and the parts list program come at no extra charge. This complete equipment makes the Metzner MA 5800 and MA 5850 particularly interesting in terms of price.
In addition, all interfaces for the integration of peripherals and printers are available. These can be intelligently integrated either individually or in pairs. If the printer heads are positioned either directly before or after the cutting head, this reduces the number of reject parts and therefore the costs.

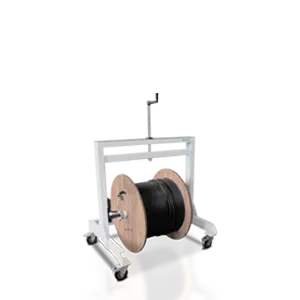

This means that the Metzner AM 5000 models are already equipped for a wide variety of tasks. In addition, Metzner can easily adapt your machine to your needs. Because Metzner has its own programming team, the software and therefore the machine can be perfectly adapted to your processes. You will also find the right peripherals for pre- and post-processing as well as for printing and marking in the Metzner range.
-
-

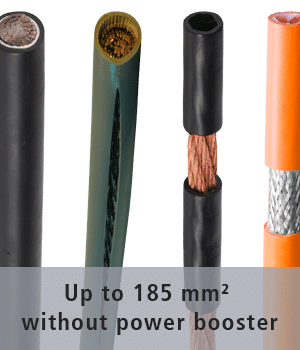

Up to 185 mm²
cross section
(350 MCM) -
-
Easy
programming... due to an intelligent software. You will be surprised how comfortable it is.
-
More output
and precise multi-step strippingdue to the pattented Metzner Double-Blade system
-
Customizable
according to your
needsand perfectly compatible with all Metzner and Ramatech peripherials
-
-
