THE CHOICE FOR CABLES UP TO 70 mm² CROSS SECTION

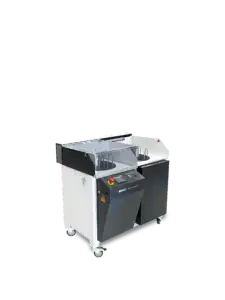

Metzner AM 3000 cable cut and strip machines range
The models of the Metzner AM 3000 series reliably perform all tasks when processing cables like cable cut and strip. They can also be perfectly combined with the various peripheral devices from the Metzner Group to create a production line that meets your requirements. The AM 3800 and the AM 3850 with rotary cutting unit offer you a whole range of benefits:
APPLICATIONS METZNER AM 3800

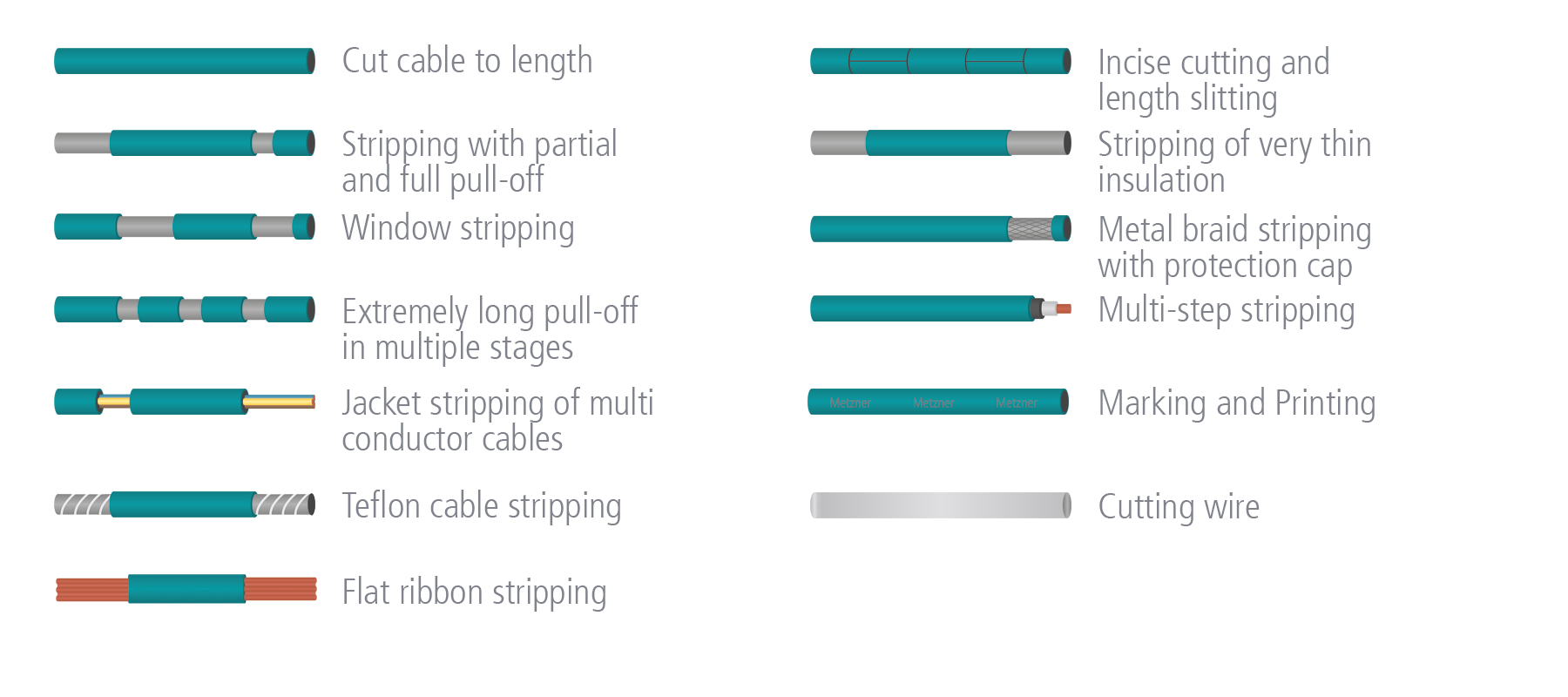

The Metzner AM 3800 cable cut and strip machine can perform these tasks for you:
APPLICATIONS METZNER AM 3850

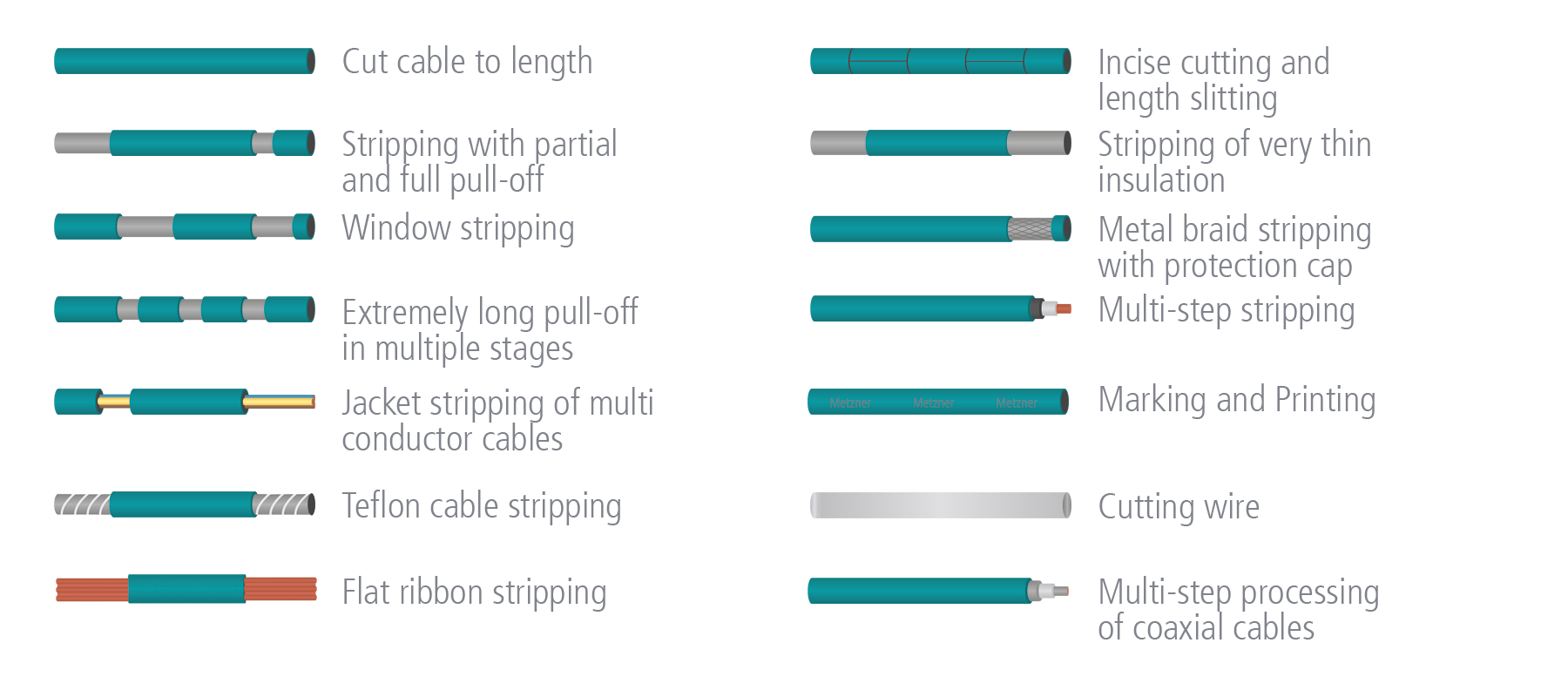

The Metzner AM 3850 can perform these tasks for you:
TECHNICAL DATA
| Functions/Programs | AM 3800 | AM 3850 |
| Rotary cutting unit | – |  |
| Cutting to length | |
|
| Stripping with full pull-off | |
|
| Stripping with partial pull-off | |
|
| Multiple step stripping | |
|
| Slitting | |
|
| Multiple stripping | 3 layers on each cable side | 3 layers on each cable side |
| Flat cables | – | – |
| Material end detection | |
|
| Cable length correction | |
|
| Recipe data management | |
|
| Length measurement system | option | option |
| Inner conductor stripping | option | option |
| Machine Parameters | ||
| Transport unit | belt | belt |
| Networking / MES interface (Industry 4.0) | option | option |
| Remote maintenance | PC integrated |
PC integrated |
| Cable cross section stranded conductor | 0.5 mm² – 70 mm² | 21 AWG – 00 AWG | 0.5 mm² – 70 mm² | 21 AWG – 00 AWG |
| Max. outer diameter | 20 mm | 0.79″ | 20 mm | 0.79″ |
| Cable length | 20 mm – 200,000 mm | 0.79″ – 656 ‘ | 20 mm – 200,000 mm | 0.79″ – 656 ‘ |
| Max. Cable transport speed | 180 m/min. | 591 ft./min. | 180 m/min. | 591 ft./min. |
| Max. Stripping length full stripping | 1st side: 75 mm – 200mm | 3″ – 8″ 2nd side: 0 mm – 145 mm | 0″ – 6″ | 1st side: 75 mm – 200 mm | 3″ – 8″ 2nd side: 0 mm – 145 mm | 0″ – 6″ |
| USB/Ethernet | |
|
| Electrical connection | 230 V; 50 Hz or with transformer | 230 V; 50 Hz or with transformer |
| Pneumatic connection | 6 bar | 87 PSI | 6 bar | 87 PSI |
| Dimensions (L x W x H) | 691 mm x 788 mm x 926 mm | 27″ x 34″ x 22″ | 928 mm x 788 mm x 926 mm | 37″ x 34″ x 22″ |
| Weight | 100 kg | 220 lbs | 100 kg | 220 lbs |
| Screen | 15″ touchscreen | 15″ touchscreen |

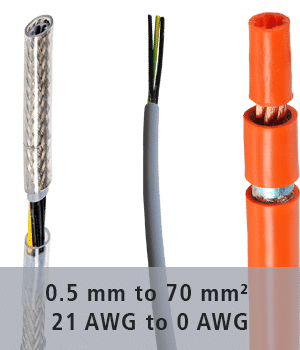

The entire spectrum from 0.5 mm ² to 70 mm² | 21 AWG - 00 AWG - as standard and without chargeable extras
Both the Metzner AM 3800 and the AM 3850 offer you maximum flexibility. This is because the patented double blade not only enables different cutting techniques, but also cross-sections from 0.5 mm² to 70 mm² | 21 AWG – 00 AWG. What’s more, all this is possible without additional options that are subject to a charge. Of course, your team can change the blades and guides without tools.
Up to 40 % more powerful motors and a particularly gentle feed rate
The Metzner AM 3800 and 3850 not only increase the productivity of your production. They also ensure outstanding quality. The conveyor belt protects the material and, thanks to pneumatics, guides it to the knife with the lowest possible slippage. Thanks to this technology, repeat accuracies of +/- 1 mm | 0.04″ are possible at a feed rate of 180 m per minute | 591 ft. per minute. The motor also achieves the necessary force with ease. It is generously dimensioned by design, so that it generates up to 40 % more cutting force than the motors of many other machines. Of course, this also contributes to the quality of the cutting result.
A fully equipped machine with a wide range of applications
The Metzner AM 3800 and AM 3850 also offer a truly complete range of software features, with both MES and PC integration included as standard. The parts list program is also included at no extra charge.

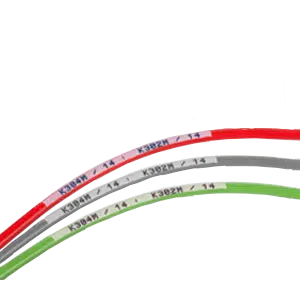

Both models are also prepared for all types of pre- and post-processing. The interface for the printer(s) is also included as standard. So you get a solid, durable and fully equipped machine.
Outstanding ROI thanks to Metzner Long-Life design
Metzner machines are designed to automate your production for many years without any problems once they have been run in. They are characterized by particularly low maintenance. Software upgrades can be installed remotely by Metzner Service on request. Nevertheless, it is possible to adapt your Metzner machine to your individual requirements for cable processing.
Optionally with inner conductor stripping, also as AM 3850 with rotary cut as standard
The Metzner AM 3800 and the Metzner AM 3850 with a rotary unit as standard can also be adapted to your individual requirements. This can be done, for example, by reprogramming the software.
Both machines are also available with automatic processing of the inner conductor. You can also retrofit this module for cable processing..
-
-
Perfect for

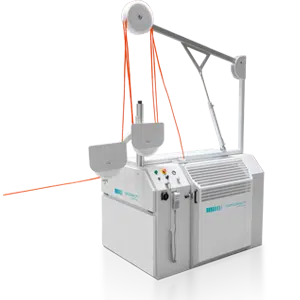

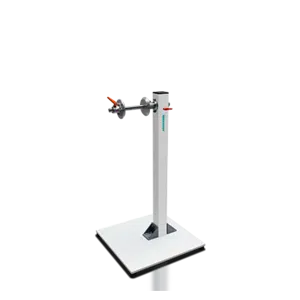

production linesPrepared to add a wide range of Metzner, Ramatech and Ulmer peripherials
-
Wider cable
cross section: up to
70 mm² | 00 AWG -
-
Toolless change of
blades and guides -
More output
due to the pattented Metzner Double-Blade system
-
-
-
All Metzner models are customizable acxcording to your needs.
