THE SOLUTION FOR ANY CONTROL CABINET MANUFACTURER

Metzner Triathlon 3000 makes automatic cabinet manufacturing more economically

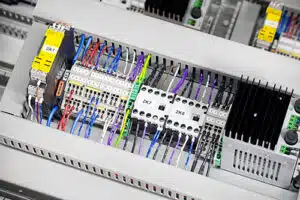

If you work in the field of panel building, the Triathlon 3000 is the ideal and cost-saving solution for you. Triathlon 3000 is a complete automation solution for control cabinet construction. It cuts the cables to length, crimps up to 2.5 mm² cross-section, prints black/white, in color or white surfaces with black lettering and sorts – all fully automatically and in 1 work step.

Significant cost reductions

1 fully automatic working step

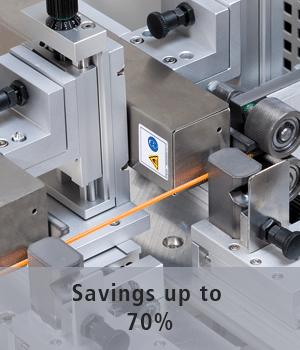

Savings up to 70%

Crimps up to 6 mm²

APPLICATIONS

The Metzner Triathlon 3000 cuts the cables to-length (0.5 mm² to 35 mm² | 21 AWG to 2 AWG) and crimps cable ends up to 4 mm² | 12 AWG crosssection. It prints automatically and is a perfect solution to automize your panel building lines.

TECHNICAL DATA

	TRIATHLON 3000
Cable outer diameter when cutting-to-length	max. 15 mm \| 0.6″
Cable cross section when crimping	max. 2.5 mm (Option: max. 4 mm) \| max. 14 AWG (Option: max. 12 AWG)
Cable cross section (depending on material)	0.5 mm² to 35 mm² \| 21 AWG to 2 AWG
Cable length min.	250 mm \| 9.8″
Cable length max.	999 mm \| 3’3″
Feeding speed max.	120 m/min. \| 394 ft./min.
Stripping length max. 1st side / 2nd side	220 mm \| 8.7″ / 170 mm \| 6.7″
Electrical connection	230 V; 50/60 Hz; 3.1 A or with transformator
Compressed air connection	6 bar \| 87 PSI
Dimensions (L x W x H)	1,750 mm x 1,100 mm x 1,520 mm \| 68″ x 43″ x 59″

DOWNLOADS

Metzner Product Catalogue Cable and Corrugated Tube Processing

The Triathlon 3000 handles cables up to 35 mm² cross section (21 AWG) and 15 mm | 0.6″ diameter. In addition, it prints these either with an ink jet printer or thermo transfer printer. The system prints in two colors, too. It can also print a white background and in black letters. Of course, the Triathlon 3000 pre-sorts the cables in their component groups. Thus, the Triathlon 3000 offers a perfect solution, to automize your panel building lines. Savings up to 70 % are possible.

Cost reduction
up to 70% thanks
to automation
Inividual printing
Everything in 1
working step
